Material 100% polyester or polyester and stainless steel
Colour White,Red,Blue,Green,Black,etc
Mainly used for the production of spunlace nonwoven fabric.
Click Here to Send a Message Via Whatsapp Now

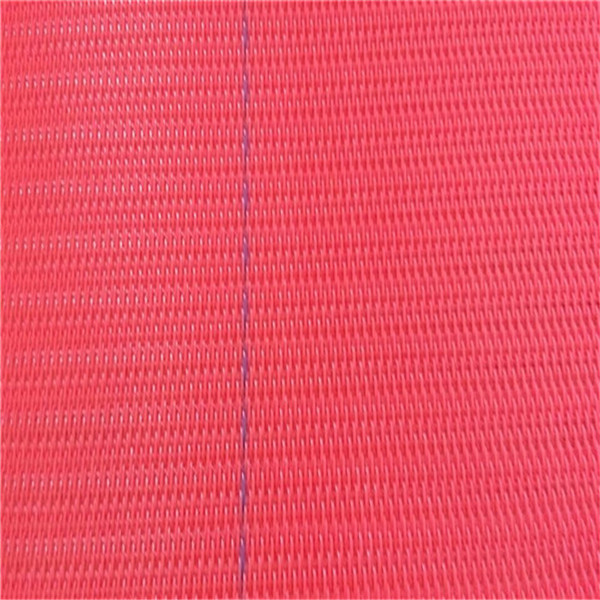

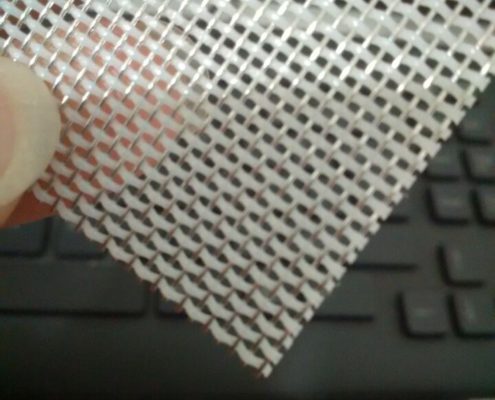

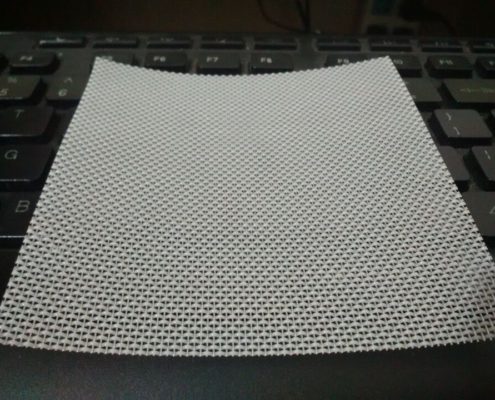

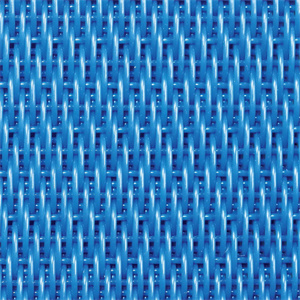

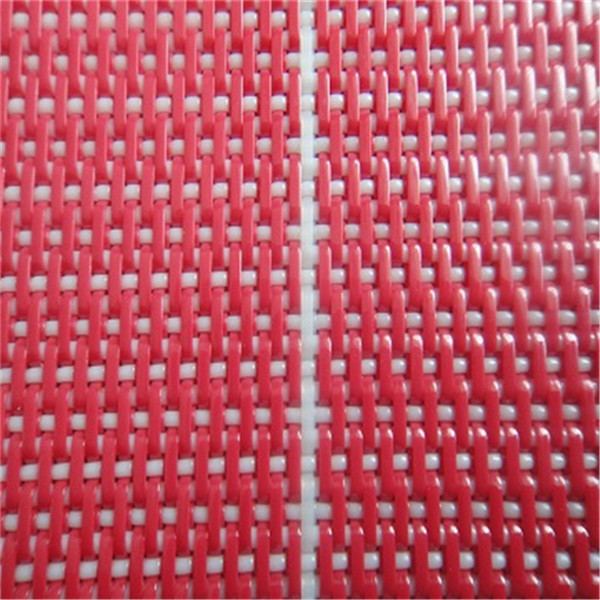

Spunlace Mesh Belt,also named Spunlance Nonwoven Forming Belt, Formation Belt,Spunlace spin belt
Conveyor Belt for Spunlace Nonwoven Fabric ,is the cricial accessories of spunlance equipment. The selection configuration has the considerable influence for the user to improve the quality of spunlance nonwoven fabric. As per different process requirement for spunlace nonwoven fabric or different section (Pre-wet section, drum section and Platform section) for spunlace equipment.
Our Spunlace Nonwoven Forming Belt has different mesh and air permeability.
Material: 100% Polyester or Polyester + Stainless Steel,etc
Related Product:Stainless Steel wire mesh for Spunlace Nonwoven
Click Here to Send a Message Via Whatsapp Now
Technical Parameters
|
Type |
Warp Diameter |
Weft Diameter |
Warp Density |
Weft Density |
Opening |
Mesh |
|
HT006 |
1.00 |
1.00 |
2.5 |
2.5 |
|
6 |
|
HT03102 |
1.00 |
1.00 |
3±0.5 |
3±0.5 |
53 |
8 |
|
HT03902 |
0.9 |
0.9 |
3±0.5 |
3±0.5 |
49 |
8 |
|
HT05902 |
0.9 |
0.9 |
5±0.5 |
5±0.5 |
20 |
14 |
|
HT04902 |
0.9 |
0.9 |
4.6±0.1 |
4.6±0.1 |
|
12 |
|
HT06702 |
0.7 |
0.7 |
7±0.5 |
7±0.5 |
27 |
18 |
|
HT07502 |
0.5 |
0.5 |
7±0.5 |
7±0.5 |
30 |
19 |
|
HT09502 |
0.5 |
0.5 |
10±0.5 |
10±0.5 |
25 |
25 |
|
HT0950402 |
0.5 |
0.4(Stainless Steel) |
9±0.5 |
10±0.5 |
34 |
25 |
|
HT20252 |
0.25 |
0.25 |
20±0.5 |
20±0.5 |
25 |
50 |
