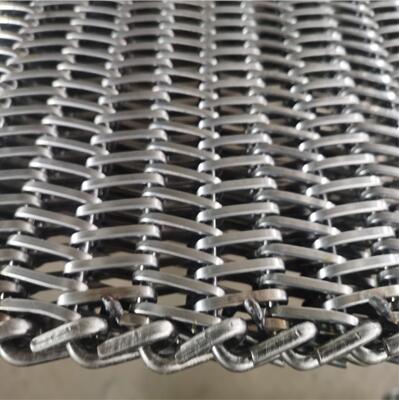

Sintering Furnace Metal Conveyor Belt

BRIEF INTRODUCTION

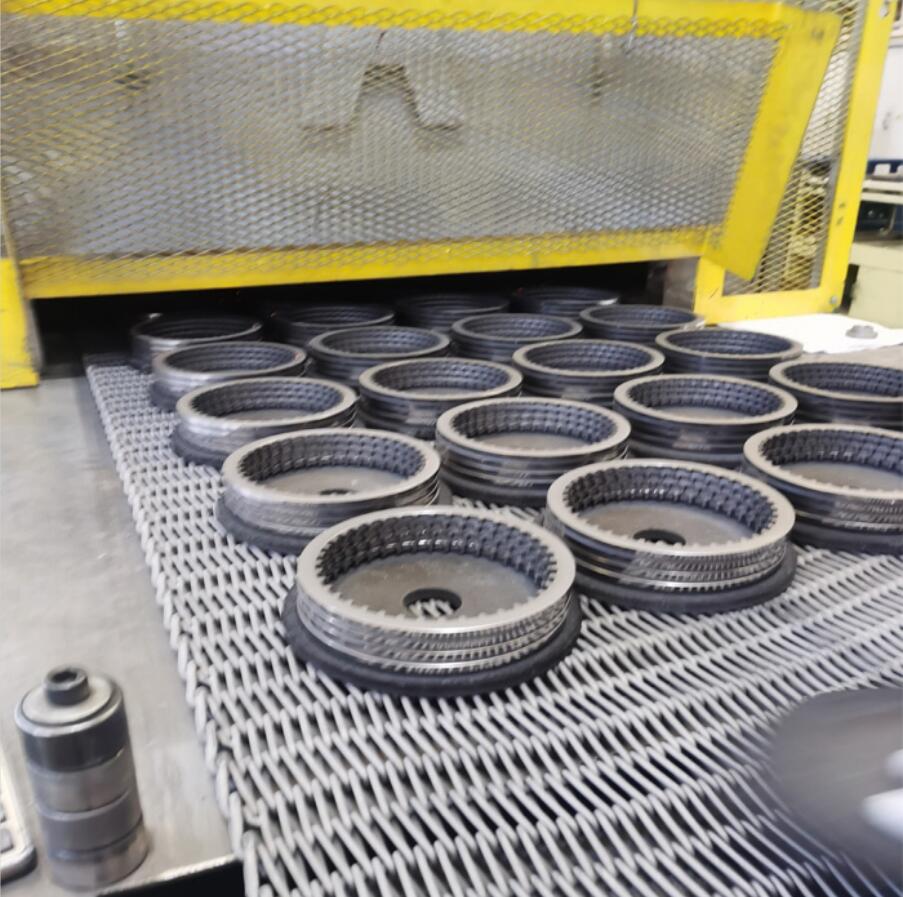

Powder metallurgy sintering furnace conveyor belt, also known as a sintered conveyor belt, is a high-temperature resistant metal conveyor belt. It is made of SUS314 material imported from Nippon Steel Corporation of Japan. It has a temperature resistance of more than 1200 degrees and is widely used in continuous sintering production lines. It is mainly used for press-forming iron-based, copper-based and other related powder metallurgy products to carry out ideal continuous sintering processes under protective atmosphere conditions. The metal conveyor belt is heated and cooled without oxidation at high temperatures to achieve the molding effect of powder metallurgy products.

Advantage:
1. Wide range of use and easy to install.
2. The structure is stable and not prone to snaking.
3. High tensile strength and large load capacity.

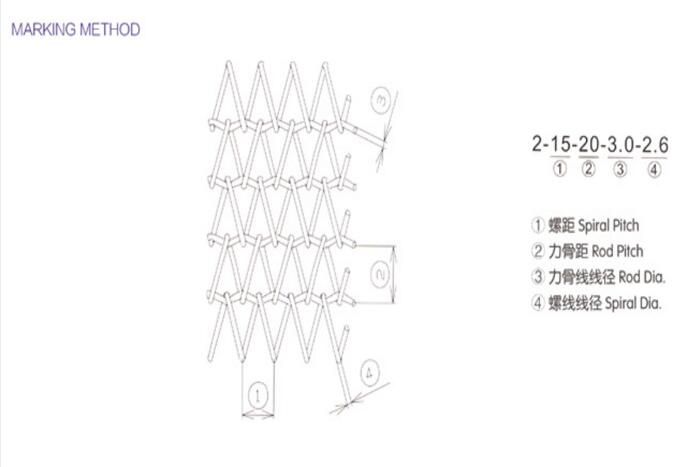

Marking Method:

General specifications for SS conveyor belts for metallurgical quenching and sintering furnaces
Material: SUS304,321,310,316,314 etc
Wire diameter: 0.8mm ~4mm

Y2-40-50-6.0-5.0
Y2-25-30-5.0-5.0
Y2- 30-40-5.0-4.0
Y2-20-25-5.0-4.0
Y2-15-20-4.0-4.0
Y2-20-25-4.0-3.4
Y2-25-30-4.0-3.2
Y2-15-20-3.4-3.2
Y2-20-25-3.4-3.0
Y2-15-20-3.2-3.0
Other specifications support customization
