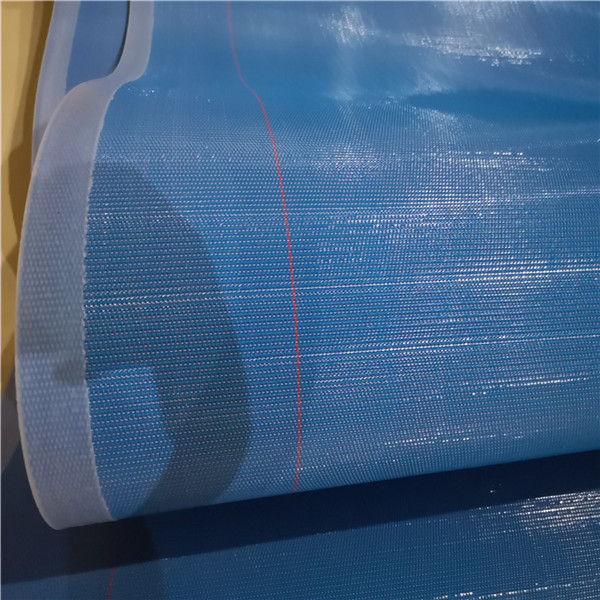

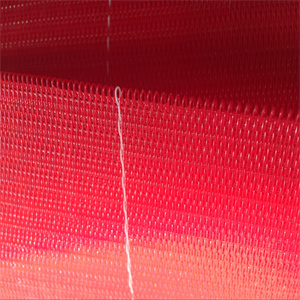

Spunbond Mesh Belt

Material 100% polyester or polyester with carbon wire

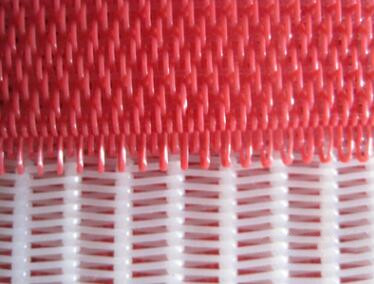

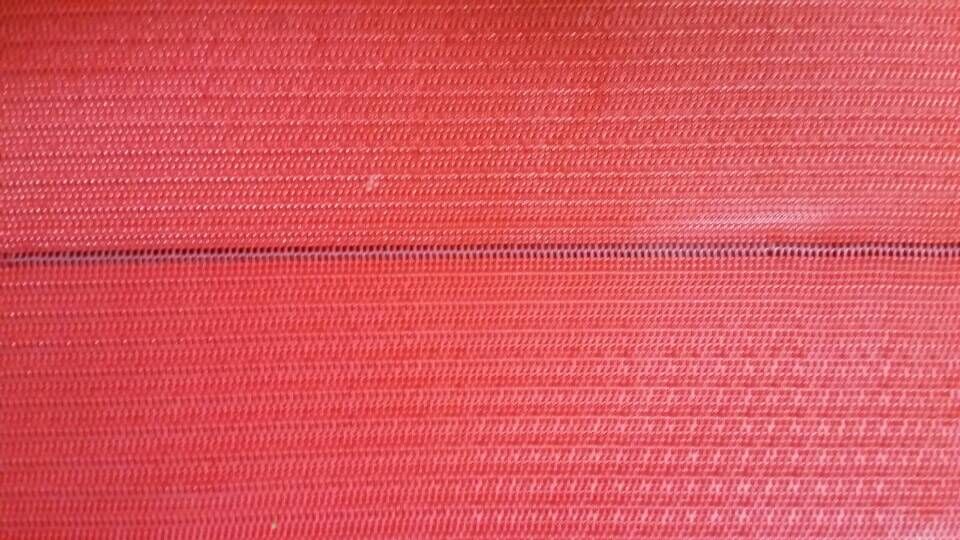

Joint: Self-pin,spiral type ,high and lower type,endless type

Mainly used in the production of spunbond nonwoven fabric.

Spunbond Mesh Belt,also named Spunbond Nonwoven Formation Belt,Spunbond Nonwoven Forming Belt,
Spunbond spin belt

Process flow: Warping–Buckling–Weaving–Once heat set–Twice heat set–Edge reinforcement–Packing–Finish

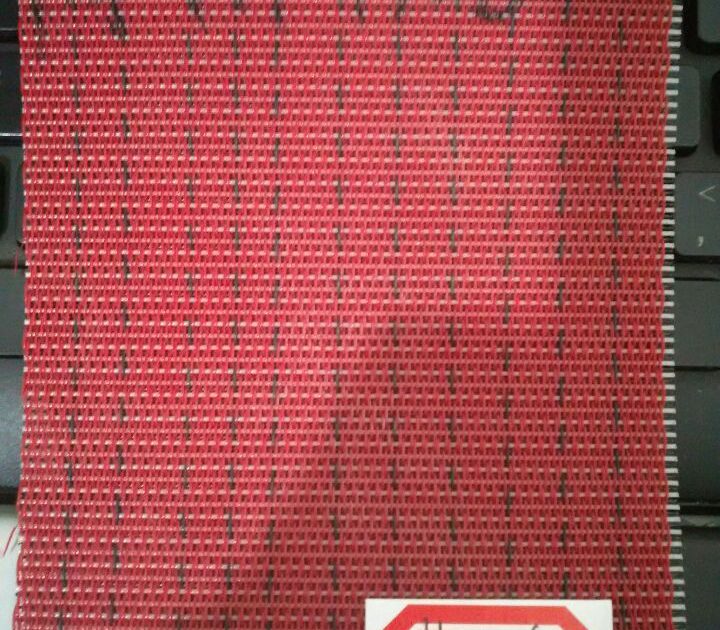

Related Product: Polyester belt with antistatic for spunbond nonwoven fabric

Application

Mainly used in various spunbond nonwoven fabric forming process.such as S(Spunbond), M(Meltblown), SS, SXS, SSS,SMS, SSMS, SMMS, SMMMS, SSMMS, etc

The raw material of spunbond nonwoven fabric is PE or PP, it will cause the static during the production,

therefore the anti-static spin belt could solve this issue.

Technical Parameters

Model	Thread Dia. (Warp)	Thread Dia. (Weft)	Density pcs (Warp )	Density pcs (Weft)	Tensile strength N/CM Belt Surface	Tensile strength N/CM Joint Surface	Weight kg/m2	Thickness mm	Air permeability m3/m2h
HT20608	0.37*0.58	0.65	20	11	2000	1400	0.9	1.6	9600
HT20604	0.344*0.HT52	0.6	20	10.5	2000	1500	0.85	1.5	9800
HT50502	0.5	0.5	20	12	1300	850	1.1	1.9	10000
